Adapted for:

Mainly used in medicine, food, electronics, hardware and other industries in various industries, such as paper boxes, cardboard boxes and other packaging on the label.

Product description:

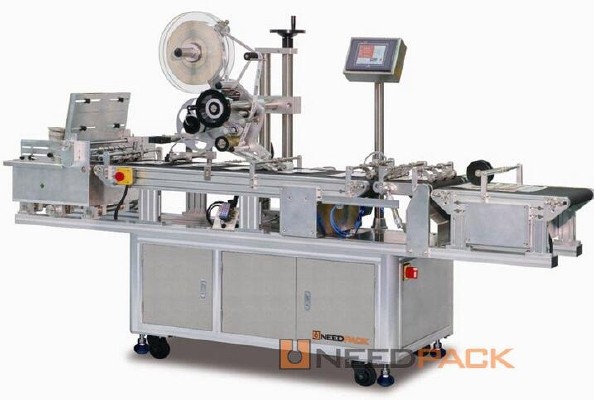

U430 especially for flat material automatic data labeling designed and applied to the unformed carton, brochures, cards and other materials. Elaborate distributor of different size and thickness of the material can cope, vacuum conveying belts to ensure stable operation and accurate labeling. A variety of options, such as synchronization code, labeling to detect and eliminate such as the thin material can, for different application requirements to provide solutions. Also can be equipped with synchronized heat transfer print engine, instant printing paste variable data and the code, especially in electronic supervision code used for real-time online Fu code requirements.

Technical parameter:

Labeling speed Capacity:40-200pcs/min (depending on the size of the material and the length of the label)

Labeling machine precision Accuracy Labeling: 1mm

Using ambient temperature temperature 5-45: Ambient

Using ambient humidity humidity: 15-90% Ambient (no condensation)

External dimensions Dimension: (L) 2390 * (W) 750 * (H) 1500 mm

Power and power Supply:220VAC Power 10% 1.5KW 50Hz

Main performance and features

1, the vacuum conveyor belt, so that the material automatically adsorbed on the conveyor belt, to avoid the problem of material displacement, so as to achieve stable and accurate paging function.

2, it can print the serial number, date, time, fixed data and so on, can also choose automatic compensation standard, meet the production line and special needs.

3, optional printing equipment: Zebra PAX, 105SL print engine; all the major brands of inkjet printing system, and so on.

4, optional leakage detecting and eliminating device for printing / printing, print content to ensure accuracy.

5, servo motor driver to ensure the speed and accuracy of labeling.

6, can be stored in 50 groups of labeling parameters of human touch screen, easy to operate, intuitive, with a wealth of online help function.

7, the use of imported large torque servo motor drive, the Swiss King Kong sand roll technology, never deformation, excellent friction, large bags angle to determine the characteristics of non slip to ensure the high precision of the delivery function.

8, the use of world-class electrical components and all materials in line with the GMP standard, to ensure the stability of the whole machine.
