Adapted for:

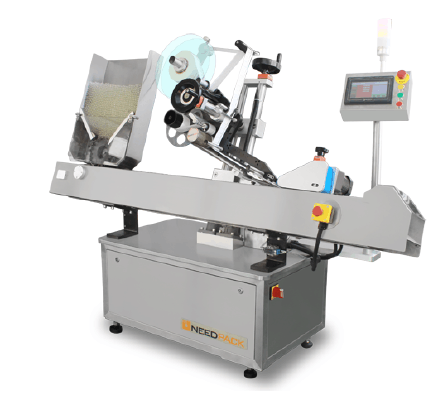

Mainly used in pharmaceutical production enterprises ampoules, vials, oral liquid bottles of various smaller diameter bottle automatic labeling and code.

Main performance and features:

1 horizontal roller conveyor belt feeding bottle is not easy to solve small vertical feeding problems.

2 horizontal labeling to the bottle as the calibration point, to ensure that the labeling accuracy.

3. Video detection device to provide multiple measuring functions, such as labeling tag detection and leakage code detection and print content detection etc.; unqualified products will be removed from the recovery.

4 can be configured with a new type of bottle holder device, to achieve high-speed and accurate labeling of the bottle into the bottle holder (optional):

The bottle support multiple detection, automatic feeding rate is greatly improved;

Changing with different diameter of the bottle and the bottle holder, only the simple adjustment and parameter settings, the operation is more simple and fast;

The bottle support belt manual holder, or linkage brake system tray machine feeding;

In the buffer bin and synchronized with the action labeling: less support, speed will reduce; when the lack of bottles, the bottle holder automatically stop waiting.

5. Optional hot printing machine, thermal transfer printer or printing machine synchronization is complete play yards and labeling equipment running status and alarm information will also reflected in the system.

Technical parameter:

Material size wide:5-40mm

Labeling speed Capacity:60-300 bottle / min (related to material and label size)

Labeling machine precision Accuracy 1mm

Using ambient temperature temperature:5-45 Ambient

Using ambient humidity humidity:15-90% Ambient (no condensation)

Outline dimension Dimension:L2000mm * W750 * H1600mm

Power and power Supply:220VAC Power 10% 1.2KW 50Hz
