Suitable for: daily chemical, pharmaceutical, food and packaging and other industries, the implementation of rigid packaging or flexible packaging materials, labeling.

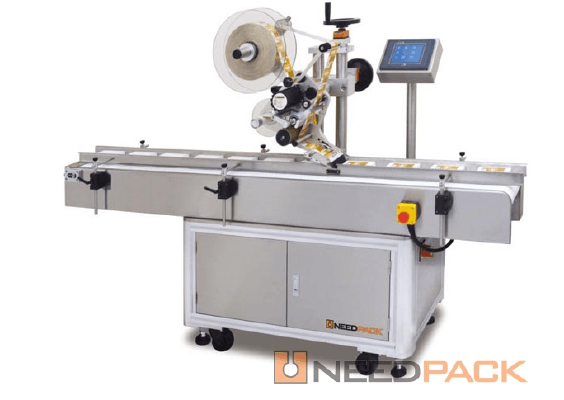

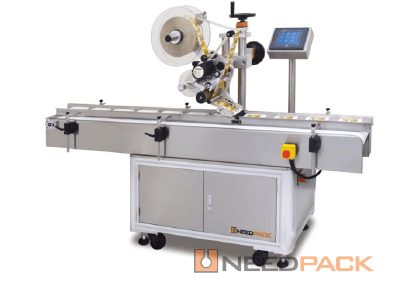

Product Description: u410 is a flexible labeling machine can be in the box on the top or side labeling, at the same time due to the different application requirements, flexible combination such as feeding device, synchronous top belt, detection and elimination mechanism, etc.. Selecting synchronized heat transfer print engine, instant printing paste variable data and the code, especially in electronic supervision code used for real-time online library code requirements.

Technical parameter:

Labeling speed Capacity:60-280pcs/min (depending on the size of the bottle and the length of the label)

Labeling machine precision Accuracy Labeling: 1mm

Material size size Bottle: width 50-130mm

Using ambient temperature temperature 5-45: Ambient

Using ambient humidity humidity: 15-90% Ambient (no condensation)

Dimension L2100mm Dimension: * W750 * H1550mm

Power and power Supply:220VAC Power 10% 1.1KW 50Hz

Main performance and features:

1, can be implemented in different items on the plane labeling, a wide range of application.

2, simple and flexible, can be equipped with different parts to meet the different parts of the product labeling.

3, dynamic entrainment to make labeling positioning more accurate.

4, can add a header to achieve seamless machine labeling machine and double label machine with complete label.

5, can add the printer to realize online complete code, and can realize online removed unqualified products.

6, man-machine interactive operation screen, easy to operate, intuitive, with the use of help function and fault display function.

7, the use of imported large torque servo motor drive, the Swiss steel sand roll technology, never deformation, excellent friction, large package angle to determine the characteristics of non slip to ensure the high precision of the delivery function.

8, the use of imported well-known brand of electrical parts and motor motor, to ensure the high precision and high stability of the whole machine.
